Now you can purchase our WP2 Drum Pump Combo pre-assembled with the pipe and foot valve! See the price list for details
|
|
The rugged, cost-efficient Oasis hand-lift pump combines all the advantaged of the old fashioned cast iron pump with modern technology.
Made of Reinforced Engineering Thermoplastics, the Oasis Pump is virtually unbreakable, lightweight and will not rust, corrode or wear. Test show no wear of the cylinder or plunger cup after millions of strokes.
Closed design prevents entry of air-borne and other potential contaminants, an important consideration for a sanitary water supply.
It is ideal for monitoring wells; test wells; as a bilge pump; as a transfer pump or any general purpose pumping application. It will pump most any liquid, and is very useful any place where water has to be carried, pumped or hauled.
The Oasis Pump is used primarily on wells, cisterns, springs, buried tanks, rivers or streams where maximum lift (distance to water) does not exceed 28-30 feet (9 meters) unless using deep well model.
With its lightweight, sturdy construction the Oasis Pump is ideal for campsites, summer homes, stock water, rural dwellings, parks, picnic areas, plant nurseries, villages or remote locations.
GENERAL SPECIFICATIONS (ALL MODELS)
Discharge 1-1/2". Suction 2" or 1-1/4". Height 18". Weight, 4 pounds. Diameter, 3- 1/2". (3" I.D. cylinder). Resistant to salt water and most chemicals. Up to 10 gallons per minute. Maximum Lift (distance to water) 30 ft.
AVAILABLE IN 2 MODELS
Model No. WP2 - A pump with pressure capability, will plumb directly to standard PVC pipe (solvent weld) or adapt to hose, etc. 0-10 lbs. normal operating pressure, up to 50 ft. head.

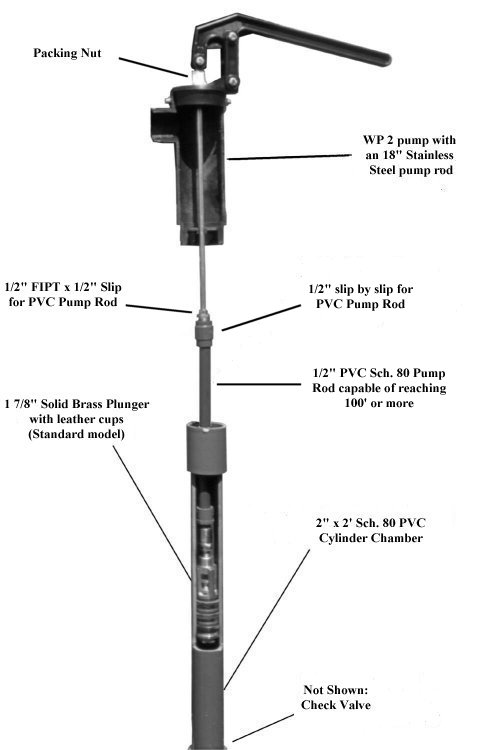

Model No. WP2D & DC280 DEEP WELL KIT - Oasis pump and cylinder combinations use 1/2" SCH. 80 PVC for the lift rod, allowing for less effort on each stroke due to the hollow PVC pipe aiding the lift. This is why this small and lightweight pump is able to pump at depths far below 100 feet.
A MODERN DURABLE PUMP

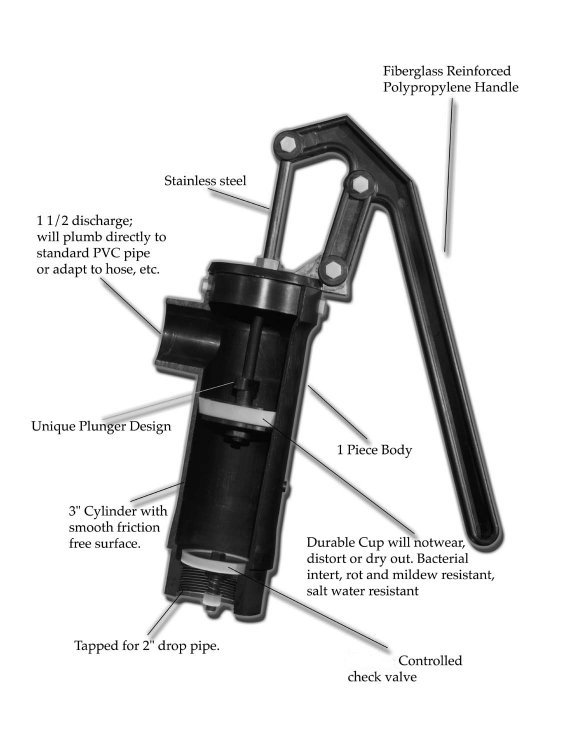

With a new plunger of our own design and other patented features, you can produce 1/3 more volume than a conventional hand pump the same size.
The new cup is molded and will not wear, distort or dry out and is bacterially inert. It's also resistant to rot, mildew, corrosion, salt water and most chemicals. This new cup may be used as a replacement item on any standard 2-3" plunger.
WEIGHT CONSIDERATION:
The pumps weight per volume factor is unmatched. A 4lb. shipping weight compared to 20lb. plus on cast iron...consider the freight savings.
At less than 1/5 the cost, this is a primary consideration.
WARRANTY
LIMITED WARRANTY: Oasis Pumps Mfg. of Mt. Vernon, Indiana warrants its
products to the purchaser at retail for a period of one year against defects in
material or workmanship. Submit proof of purchase and transportation cost
and we will repair or replace the item at our option, no charge. Oasis
also will repair or replace pumps for 25% (1/4) of the current retail price plus
transportation costs. Return to Oasis Pumps Mfg. with proof of purchase ,
installation date, failure date and description of defect.
Oasis Pumps Mfg. will not be liable for damage or wear to products caused by
abnormal operating conditions accident, freezing, abuse, misuse, unauthorized
alteration or repair, or if the product was not installed in a proper manner.
Oasis Pumps Mfg. will not be liable for any incidental or consequential
damages, losses or expenses arising from installation use, or any other
causes. There are no express or implied warrants including merchant ability
or fitness for a particular purpose which extend beyond those warranties
described or referred to above.
